0491026 114300 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Device/engine identification) to imprint the engine number and engine identification

Consisting of:

1 = 0491027 Holder
NOTE: (Die holder) engine: M50, M52

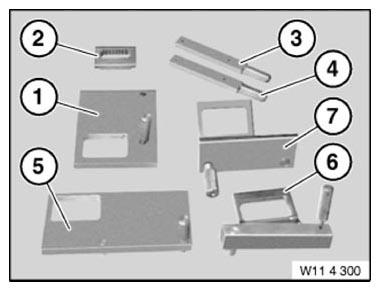

Fig 1: Identifying Device (0491026)
Courtesy of BMW OF NORTH AMERICA, INC.
2 = 0491028 Die-plate
3 = 0491029 Punch element
NOTE: (Embossing stamps 0...9, separate embossing stamps) 0...9, list digits individually
4 = 0491030 Punch element
NOTE: (Embossed letters) embossed letters A, E, S Indication of the letter is required engine: M70, M73 - letter A, S engine: M40, M43 - letter E engine: M42, M44, M50, M52, M60, M62 - letter S
5 = 0493371 Holder
NOTE: (Die holder) engine: M40, M42, M43, M44
6 = 0493372 Holder
NOTE: (Die holder) engine: M60, M62
7 = 0493373 Holder
NOTE: (Die holder) engine: M70, M73
9 = 0493374 Case
NOTE: (Case)
