Storage Location

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Y1

Y2

Consisting of:

  1. 0490919  Claw
    NOTE: (driver claw (2 pieces))
  2. 0490920  Screw
    NOTE: (Knurled screw)

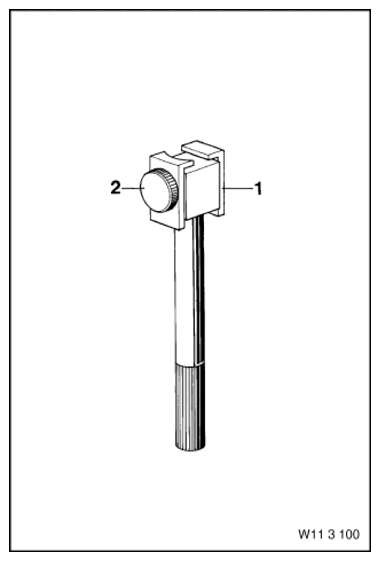

    Fig 1: Identifying Device (0490918)
    G09969045Courtesy of BMW OF NORTH AMERICA, INC.
