SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 05 92 (507)

Consisting of:

0490888 Gauge
NOTE: (Gauge for intake side 1...4)

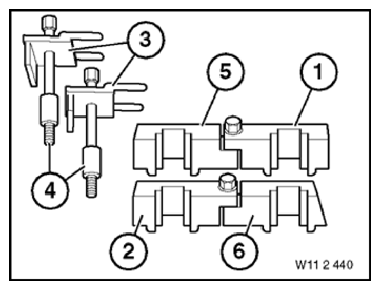

Fig 1: Identifying Device (0490887)
Courtesy of BMW OF NORTH AMERICA, INC.
0490889 Gauge
NOTE: (Gauge for intake side 5...8)
0490890 Plate
NOTE: (Mounting plate (2 pieces))
0490891 Screw
NOTE: (Special screw (2 pieces))
0490892 Gauge
NOTE: (Gauge for exhaust side 1...4) Setpoint value 3.5°
0490893 Gauge
NOTE: (Gauge for exhaust side 5...8) Setpoint value 3.5°
