Storage Location

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Consisting of:

7 = 0494316 Synchronizing key
NOTE: Engine: N73 Only available via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011

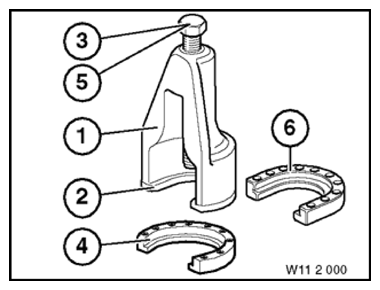

Fig 1: Identifying Extractor (0490798)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0490799 Bell housing
NOTE: Available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011
2 = 0490800 Plate
NOTE: (Plate) Engine: M10, M30, S14, S38, N73 Liquidation of existing inventory and then available only via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
3 = 0490801 Spindle
NOTE: Engine: M10, M30, M70, M73, S14, S38, N73 Liquidation of existing inventory and then available only via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
4 = 0490802 Plate
NOTE: Engine: M50, M52, M60, M62 Liquidation of existing inventory and then available only via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
5 = 0490803 Spindle
NOTE: (Spindle 165 mm) Engine: M50, M52, M60, M62 Only available via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
6 = 0490804 Plate
NOTE: (Plate) Engine: M70, M73, N73 Only available via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
