SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 05 92 (507)

Consisting of:

0490788 Strip
NOTE: (Sealing strip) With rubber seal (wide version) Only orderable as a complete tool set 11 1 470 (83 30 0 490 787) - as of 09.07.13.

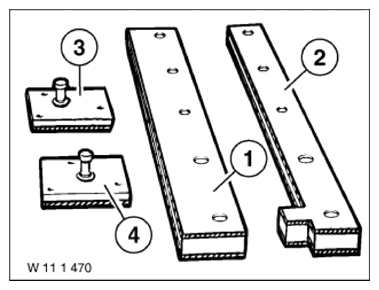

Fig 1: Identifying Device (0490787)
Courtesy of BMW OF NORTH AMERICA, INC.
0490789 Strip
NOTE: (Sealing strip) With rubber seal (narrow version) - Replaced by 11 1 477 (0 490 794)
0490790 Plate
NOTE: (Sealing plate for cylinder row 1...4) Replaced by 11 1 493 (0 493 447)
0490791 Plate
NOTE: (Sealing plate for cylinder row 5...8) Replaced by 11 1 494 (0 493 448)
0490792 Rubber seal
NOTE: (Rubber seal for sealing strip 11 1 471) available as part of set of special tools only
0490793 Rubber seal
NOTE: (Rubber seal for sealing strip 11 1 472) Replaced by 11 1 478 (0 490 795)
0490794 Strip
NOTE: (Sealing strip) With rubber seal (narrow version) Only available as part of complete set
0490795 Rubber seal
NOTE: (Rubber seal for sealing strip 11 1 477) available as part of set of special tools only
