SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 09 94 (839)

Consisting of:

0490779 Strip
NOTE: (Sealing strip) With rubber seal (wide version)

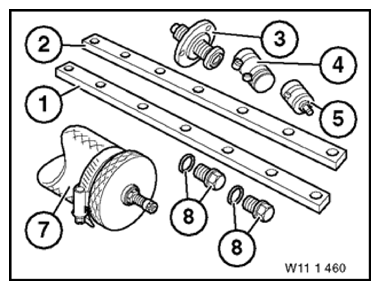

Fig 1: Identifying Device (0490778)
Courtesy of BMW OF NORTH AMERICA, INC.
0490780 Strip
NOTE: (Sealing strip) With rubber seal (narrow version)
0490781 Cover
NOTE: For coolant pump connection
0490782 Hose
NOTE: (Screw hose) Engine: M51
0490783 Hose
NOTE: (Screw hose) With valve Engine: M51
0490784 Rubber seal
NOTE: (Rubber seals for sealing strips)
0490785 Hose
NOTE: (Screw hose) With valve Engine: M41
0490786 Screw
NOTE: (Screw plugs (2 x))
