SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 05 89 (099)

Consisting of:

  1. 0490762  Strip
    NOTE: (sealing strip) With 5 spigots and rubber seal - Engine: M42, M44, M50, M52, S54 sale of existing inventory, then available as part of set of special tools 11 1 430 = 83 30 0 490 761 only - as of 29.11.2011

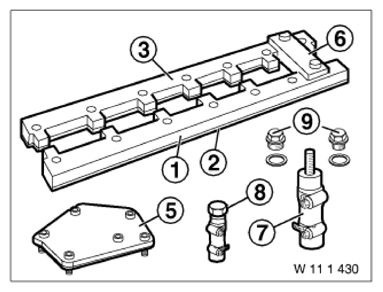

    Fig 1: Identifying Device (0490761)
    G09969027Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0490763  Rubber seal
    NOTE: (rubber seal) For sealing strip 11 1 431 - Engine: M42, M44, M50, M52 Liquidation of existing inventory and then available only via complete tool set 11 1 430 = 83 30 0 490 761 - status 29.11.2011
  3. 0490764  Strip
    NOTE: (sealing strip) With 7 spigots and rubber seal - Engine: M42, M44, M50, M52, S54 sale of existing inventory, then available as part of set of special tools 11 1 430 = 83 30 0 490 761 only - as of 29.11.2011
  4. 0490765  Rubber seal
    NOTE: (rubber seal) For sealing strip 11 1 433 - Engine: M42, M44, M50, M52 Liquidation of existing inventory and then available only via complete tool set 11 1 430 = 83 30 0 490 761 - status 29.11.2011
  5. 0490766  Plate
    NOTE: (formed plate) With rubber seal - Engine: M42, M44 Liquidation of existing inventory and then available only via complete tool set 11 1 430 = 83 30 0 490 761 - status 29.11.2011
  6. 0490767  Bridge
    NOTE: With rubber seal and 2 screws - engine: M42, M44 Liquidation of existing inventory and then available only via complete tool set 11 1 430 = 83 30 0 490 761 - status 29.11.2011
  7. 0490768  Plug
    NOTE: (seal plugs) With valve and standard clip - Engine: M42, M44, M50, M52, S50 available as part of set of special tools only
  8. 0490769  Plug
    NOTE: (seal plugs and standard clip) Engine: M42, M44, M50, M52 available as part of set of special tools only
  9. 0490770  Tool
    NOTE: (standard parts) Engine: M42, M44, M50, M52 Liquidation of existing inventory and then available only via complete tool set 11 1 430 = 83 30 0 490 761 - status 29.11.2011
