SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 04 88 (906)

Consisting of:

0490756 Strip
NOTE: (sealing strip with 7 spigots)
0490757 Strip
NOTE: (sealing strip with 2 spigots)

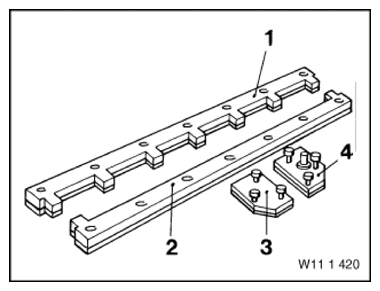

Fig 1: Identifying Device (0490755)
Courtesy of BMW OF NORTH AMERICA, INC.
0490758 Plate
NOTE: (cover plate) Engine: M70, M73
0490759 Plate
NOTE: (cover plate with valve) Engine: M70, M73
0490760 Rubber seal
NOTE: (rubber seal) For sealing strips 11 1 421, 11 1 422
