Storage Location

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

X7

Consisting of:

  1. 0490737  Mandrel
    NOTE: (Drift)
  2. 0490738  Holding sleeve
    NOTE: (Guide sleeve) Replaced by 00 9 120 (0 490 504)

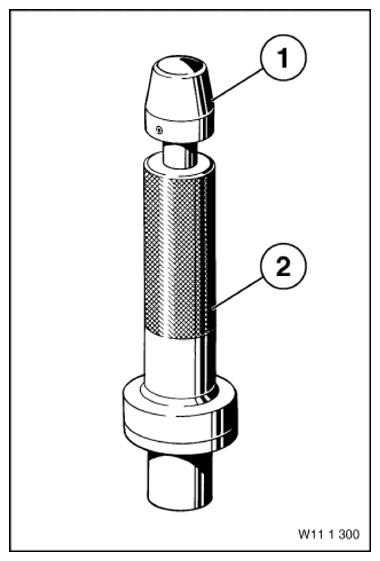

    Fig 1: Identifying Device (0490736)
    G09968997Courtesy of BMW OF NORTH AMERICA, INC.
