Storage Location

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

X1

Consisting of:

  1. 0490731  Nut
    NOTE: Engine: M10
  2. 0490732  Nut
    NOTE: (Nut) Engine: M30
  3. 0490733  Ring
    NOTE: (Thrust ring) Engine: M10, M30, M42

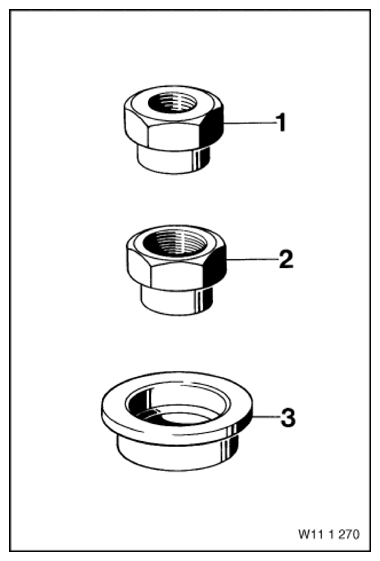

    Fig 1: Identifying Device (0490730)
    G09969037Courtesy of BMW OF NORTH AMERICA, INC.
