0490696 111060 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300494362

NOTE: For removing and installing camshafts and valve springs. Replaced by 11 9 000 (0 494 362)

Consisting of:

9 = 0490697 Frame
NOTE: (Pressure frame) Replaced by 11 9 000 (0 494 362)
9 = 0490698 Spindle
NOTE: (Spindle (4 pieces)) Replaced by 11 9 000 (0 494 362)
9 = 0490699 Pin
NOTE: (Dowel pins (4 pieces)) Replaced by 11 9 000 (0 494 362)

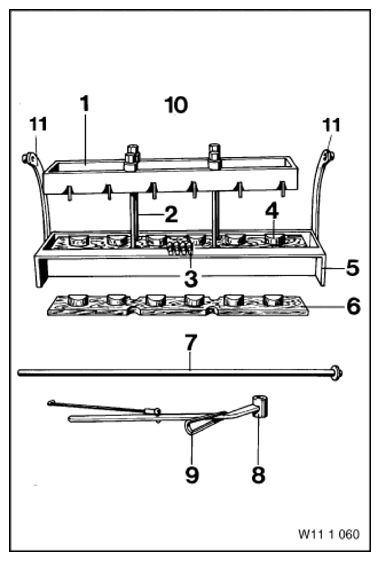

Fig 1: Identifying Device (0490696)
Courtesy of BMW OF NORTH AMERICA, INC.
9 = 0490700 oddments tray
NOTE: (Board) Replaced by 11 9 000 (0 494 362)
9 = 0490701 Frame
NOTE: (Support frame) Replaced by 11 9 000 (0 494 362)
9 = 0490702 oddments tray
NOTE: (Board) Replaced by 11 9 000 (0 494 362)
9 = 0490703 Rod
NOTE: (Guide rod)
9 = 0490704 Lever
NOTE: (Pressure lever with hook) Replaced by 11 0 342/11 0 343 Engine: S14, M20, M30, S38, M40, M42, M50, M70 Replaced by 11 9 000 (0 494 362)
9 = 0490705 Basket
NOTE: (Valve spring cage) Replaced by 11 9 000 (0 494 362)
9 = 0490707 Clip
NOTE: (Guide bracket, bent) Replaced by 11 9 000 (0 494 362)
9 = 0490708 Tab
NOTE: (Securing clip) For securing the cylinder head on the clamping frame 11 1 065 Replaced by 11 9 000 (0 494 362)
