0490691 111050 Fitting aid AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300494362

NOTE: (Mounting accessory) For removing and installing the valve springs Replaced by 11 9 000 (0 494 362)

Consisting of:

  1. 1 = 0490692  Clip
    NOTE: (Guide bracket, cropped) Engine: S38
  2. 2 = 0490693  Basket
    NOTE: (Valve spring cage) Engine: S14, S38, M50
  3. 3 = 0490694  oddments tray
    NOTE: (Board) Engine: S14, S38

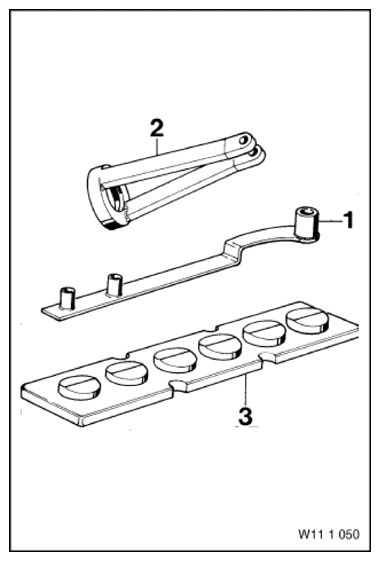

    Fig 1: Identifying Fitting Aid (0490691)
    G09969096Courtesy of BMW OF NORTH AMERICA, INC.
  4. 9 = 0490695  Nut
    NOTE: (Nut (4 pieces) for pressure frame) Engine: M20, M30


Replaced by: 83300494362

NOTE: (Mounting accessory) For removing and installing the valve springs Replaced by 11 9 000 (0 494 362)

Consisting of:

  1. 1 = 0490692  Clip
    NOTE: (Guide bracket, cropped) Engine: S38
  2. 2 = 0490693  Basket
    NOTE: (Valve spring cage) Engine: S14, S38, M50
  3. 3 = 0490694  oddments tray
    NOTE: (Board) Engine: S14, S38
  4. 9 = 0490695  Nut
    NOTE: (Nut (4 pieces) for pressure frame) Engine: M20, M30
    Fig 1: Identifying Fitting Aid (0490691)
    G09969111Courtesy of BMW OF NORTH AMERICA, INC.
