0490681 111040 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300494362

NOTE: For removing and installing camshaft and valve springs. Replaced by 11 9 000 (0 494 362)

Consisting of:

0490682 Frame
NOTE: (Pressure frame) Replaced by 11 9 000 (0 494 362)
0490683 Spindle
NOTE: (Threaded spindle with nut (2 pieces))
0490684 Clip
NOTE: (Clamping collar)
0490685 Spindle
NOTE: (Pressure spindle)

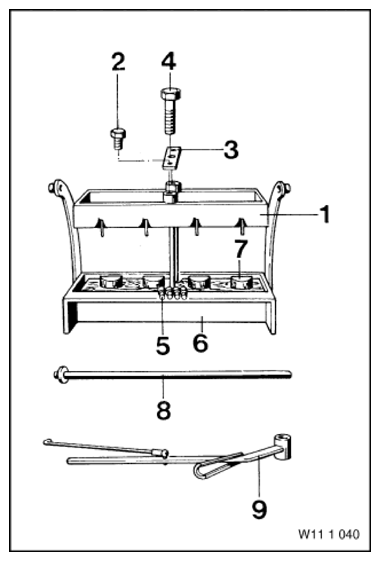

Fig 1: Identifying Device (0490681)
Courtesy of BMW OF NORTH AMERICA, INC.
0490686 Pin
NOTE: (Lock pins) To secure boards for cylinder heads
0490687 Frame
NOTE: (Support frame with guide clips)
0490688 oddments tray
NOTE: (Board) Replaced by 11 9 000. (0 494 362)
0490689 Rod
NOTE: (Guide rod)
0490690 Lever
NOTE: (Pressure lever) With hook and valve spring cage
