0490673 111030 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Device) For pressure-testing the cylinder head.

Consisting of:

0490674 Strip
NOTE: (Sealing strip with rubber padding)
0490675 Strip
NOTE: (Sealing strip with rubber padding)
0490676 Upholstery
NOTE: (Rubber padding (2 pieces))
0490677 Cover
NOTE: (Cover for branch flange)
0490678 Cover
NOTE: (Cover for connection heating)

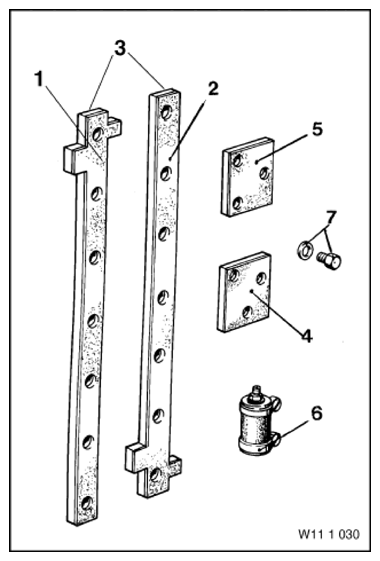

Fig 1: Identifying Device (0490673)
Courtesy of BMW OF NORTH AMERICA, INC.
0490679 Connection
NOTE: (Air connection)
0490680 Screw
NOTE: (Screw plugs (2 x))
