0490663 111020 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Tool for pressure-testing cylinder head)

Consisting of:

0490664 Strip
NOTE: (sealing strips (2 pieces))
0490665 Upholstery
NOTE: (Rubber padding (2 pieces))
0490666 Adapter
NOTE: (Adapter) Engine: M20
0490667 Cover
NOTE: (cover for branch flange) Engine: M20
0490668 Adapter
NOTE: (Adapter) Engine: M20

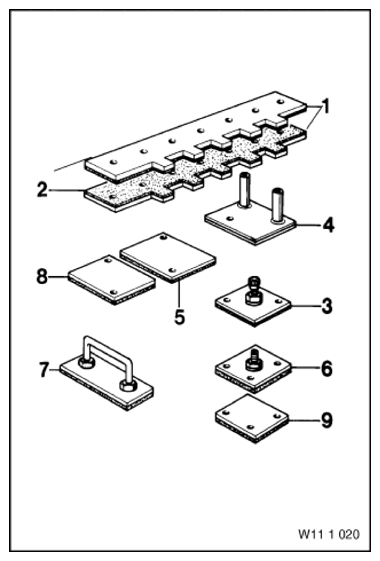

Fig 1: Identifying Device (0490663)
Courtesy of BMW OF NORTH AMERICA, INC.
0490669 Adapter
NOTE: (Adapter) Engine: M40
0490670 Plate
NOTE: (Cover plate) For connection duct to water pump - Engine: M40
0490671 Plate
NOTE: (Cover plate for radiator flange connection) Engine: M40
0490672 Plate
NOTE: (Cover plate for heater connection) Engine: M40
