0490653 111010 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressure-testing cylinder head

Consisting of:

0490654 Screw
NOTE: (screws (14 pieces))
0490655 Strip
NOTE: (sealing strips (2 pieces))
0490656 Upholstery
NOTE: (Rubber padding (2 pieces))
0490657 Connection
NOTE: (Air connection with reducer) Engine: M10
0490658 Cover
NOTE: (cover for branch flange) Engine: M10

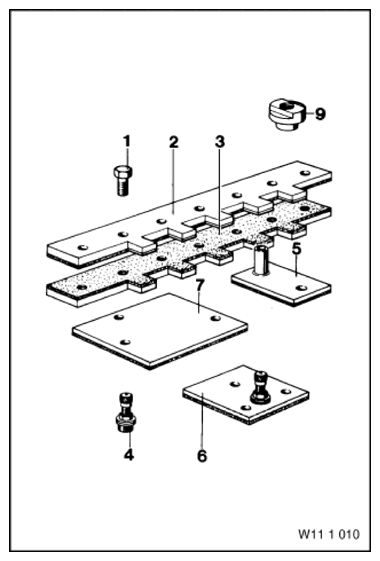

Fig 1: Identifying Device (0490653)
Courtesy of BMW OF NORTH AMERICA, INC.
0490659 Connection
NOTE: (Air connection) Engine: M30
0490660 Cover
NOTE: (cover for branch flange) Engine: M30
0490661 Bridge
NOTE: Engine: M30
0490662 Adapter
NOTE: (Adapter) Replaced by 00 9 120 (0 490 504)
