SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 12 93 (701)

Consisting of:

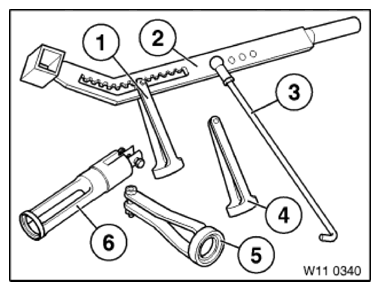

Fig 1: Identifying Fitting Aid (0490646)

Courtesy of BMW OF NORTH AMERICA, INC.

0490647 Basket
NOTE: (Valve spring cage) Engine: M43, M73
0490648 Lever
NOTE: (compression lever) Engine: all, except M10
0490649 Hook
NOTE: (hook) Length 220 mm - Engine: all, except M10 Replaced by 11 9 000 (0 494 362)
0490650 Basket
NOTE: (valve spring cage) Replaced by 11 0345, engine: M52
0490651 Basket
NOTE: (Valve spring cage) Engine: M44, M52, M62, S62, S54 Replaced by 11 9 000 (0 494 362)
0493285 Basket
NOTE: (Valve spring cage) Engine: M47, M47TU, M57, N40, N42, M67, M67TU
