SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 12 93 (701)

Consisting of:

0490638 Strip
NOTE: (Sealing strip) Engine: M43 Only available as part of complete set

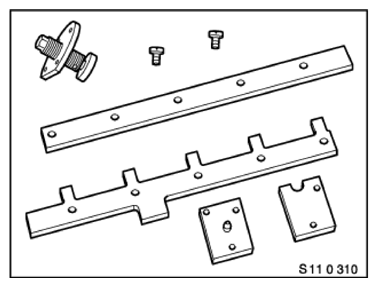

Fig 1: Identifying Device (0490637)
Courtesy of BMW OF NORTH AMERICA, INC.
0490639 Strip
NOTE: (Sealing strip) Replaced by 11 0 318 (0 490 645)
0490640 Upholstery
NOTE: (Rubber padding (2 pieces)) Engine: M43 Only available as part of complete set
0490641 Cover
NOTE: (Cover for water pump connection) Engine: M43 Only available as part of complete set
0490642 Cover
NOTE: (Cover for radiator connection with valve) Engine: M43 Only available as part of complete set
0490643 Cover
NOTE: (Cover for heater connection) available as part of complete set only
0490644 Screw
NOTE: (Screw plug (2 pieces)) Engine: M43 Only available as part of complete set
0490645 Strip
NOTE: (Sealing strip) Engine: M43 Only available as part of complete set
