SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 09 92 (558)

Consisting of:

2 = 0493634 Case
NOTE: With foam insert for recording compression tester

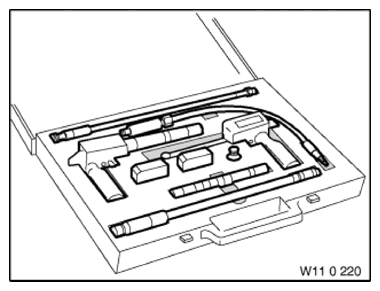

Fig 1: Identifying Compression Tester (0490613)
Courtesy of BMW OF NORTH AMERICA, INC.
2 = 0494517 Adapter
NOTE: Measuring "absolute compression" at all cylinders. Engine: W17
16 = 0495279 Adapter
NOTE: M67, M67TU engine
4 = 0490614 Compression tester
NOTE: (Compression tester) For diesel engines.
4 = 0490615 Sensor
NOTE: (Test probe) For recording compression testers 11 0 221 and 11 0 160/engine: M21, M41, M47, M51, M57, M57T2
4 = 0490616 Card
NOTE: (Cards) 100 pieces For recording compression tester 11 0 221
4 = 0490617 Compression tester
NOTE: (Compression tester) For petrol engines.
4 = 0490618 Hose
NOTE: (Extension hose) For rubber tapered section with fitting 11 0 228
4 = 0490619 Sensor
NOTE: (Test probe) For recording compression testers 11 0 224 and 11 0 160/engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, N62, S50US, S52US, S62
4 = 0490620 Sensor
NOTE: (Test probe) For recording compression testers 11 0 224 and 11 0 160/engine: S14, S38, S50 - Replaced by 11 0 235 (0 493 129)
4 = 0490621 Tapered section
NOTE: (Rubber tapered section) For recording compression testers 11 0 224 and 11 0 160.
4 = 0490622 Card
NOTE: (Cards) 100 pieces For recording compression tester 11 0 224
4 = 0490625 Valve
NOTE: (Non-return valve)
4 = 0490626 Filter
NOTE: (Filter) 3 x 3 mm
9 = 0493129 Sensor
NOTE: (Test probe, screw-in) For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54, S85
2 = 0493387 Sensor
NOTE: (Test probe) For recording compression tester 11 0 221 or DIS pressure sensor/engine: M47, M57, M57TU, M57T2
