0490602 110190 Fitting aid AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300494362

NOTE: (Installation accessory) For removing and installing valve springs. Replaced by 11 9 000. (0 494 362)

Consisting of:

0490603 Tab
NOTE: (Securing clip and 2 screws) Replaced by 11 0 213/Engine: M41, M51 Replaced by 11 0 213 (0 490 611)
0490604 Pipe
NOTE: (Guide tube) Engine: All
0490605 Lever
NOTE: (Pressure lever with hook) Replaced by 11 0 342, 11 0 343/Engine: M51, S50, M60

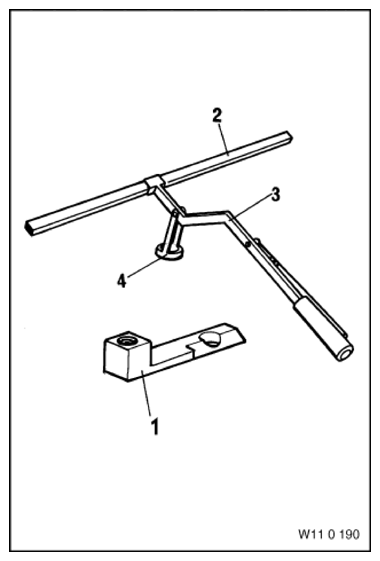

Fig 1: Identifying Fitting Aid (0490602)
Courtesy of BMW OF NORTH AMERICA, INC.
0490606 Basket
NOTE: (Valve spring cage) Engine: M41, M51, S50
