01 16 96 (107)

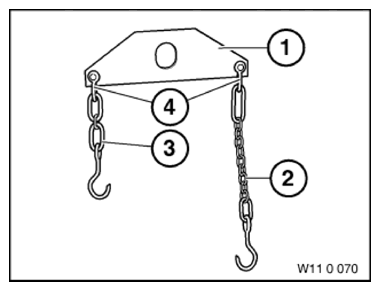

Fig 1: Identifying Lifting Gear (0490579)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

4 = 0493753 Shackle
NOTE: (Shackle) 2 pieces As of 08/2011, only available as a complete set via 11 0 070 = 0490579. Delivered with TUV inspection certificate and operating instructions.
1 = 0490580 Lifting gear
NOTE: (Cross member) As of 08/2011, only available as a complete set via 11 0 070 = 0490579. Delivered with TUV inspection certificate and operating instructions.
2 = 0490581 Chain
NOTE: (Chain) Version: long As of 08/2011, only available as a complete set via 11 0 070 = 0490579. Delivered with TUV inspection certificate and operating instructions.
3 = 0490582 Chain
NOTE: (Chain) Version: short As of 08/2011, only available as a complete set via 11 0 070 = 0490579. Delivered with TUV inspection certificate and operating instructions.
