SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 02 09 (514)

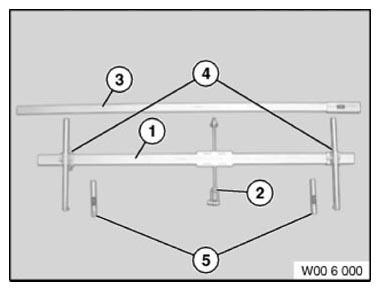

Fig 1: Identifying Device (0496413)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

0496414 Lifting gear
NOTE: (Cross-member) Replacement for 00 0 201
0496415 Spindle
NOTE: (Spindle with thrust nut) Replacement for 00 0 202
0496416 Extension
NOTE: (extension for cross-member) Model series: E65 Replacement for 00 0 203
0496417 Support
NOTE: (Supports) Replacement for 00 0 204
0496418 Support
NOTE: (supports (extension)) Model series: R50, R53 Replacement for 00 0 205
0496419 Chain
NOTE: (Chain with hook) Replacement for 00 0 209 Replaced by 00 6 080
