0490491 008400 Extractor AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Universal extractor Kukko 44-1) For taper roller bearing in rear axle final drive

Consisting of:

  1. 0490492  Spindle

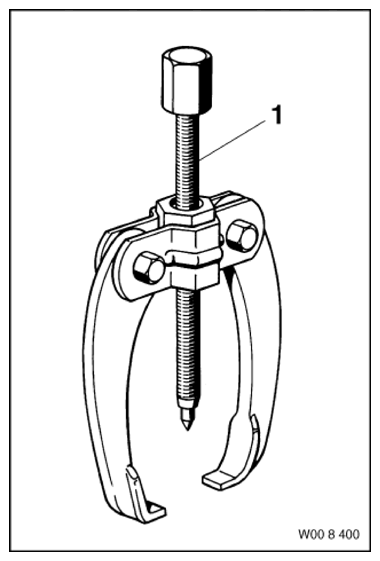

    Fig 1: Identifying Extractor (0490491)
    G09968472Courtesy of BMW OF NORTH AMERICA, INC.
