0490482 007500 Extractor AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (universal extractor Kukko 17/K) For pulling bearing inner race from drive flange on wheel bearing, rear

Consisting of:

0490483 Spindle
NOTE: (pressure spindle with bridge)
0490484 Spindle
NOTE: (adjusting spindle (2 x) with knurled nuts (4 x))
0490485 Spindle
NOTE: (pressure spindle, side)
0490486 Clip
NOTE: (adjusting jaw (2 x))
0490487 Screw
NOTE: (adjusting screws (1 x) with nut) For adjusting jaw (1 x)

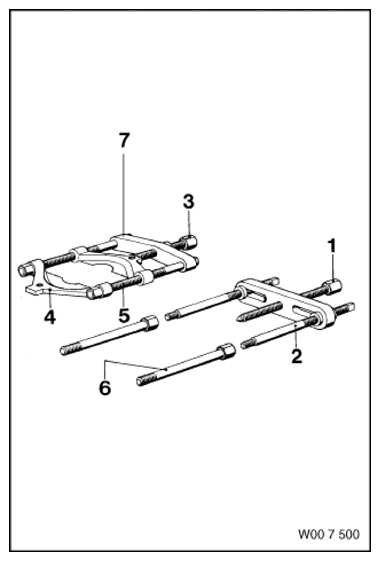

Fig 1: Identifying Extractor (0490482)
Courtesy of BMW OF NORTH AMERICA, INC.
0490488 Extension
NOTE: (extension (2 x))
0490489 Bridge
