0490459 004510 Mandrel AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Limit drift gauges 8.1/8.2 H7) not in repair instructions (coordinated on 22.3.96)

Consisting of:

0490460 Mandrel
NOTE: (Limit drift gauge 8.1 H7) not in repair instructions (coordinated on 22.3.96)
0490461 Mandrel
NOTE: (Limit drift gauge 8.2 H7) not in repair instructions (coordinated on 22.3.96)

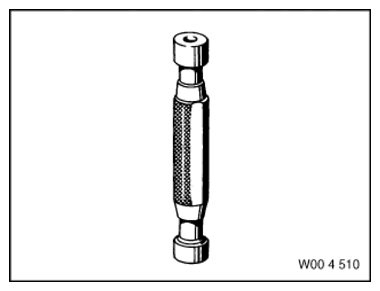

Fig 1: Identifying Mandrel (0490459)
Courtesy of BMW OF NORTH AMERICA, INC.
