SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 05 86 (604)

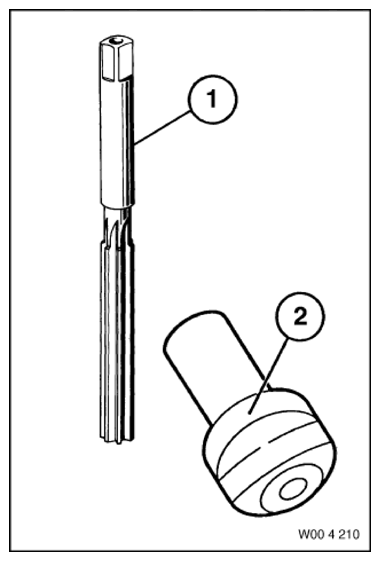

Fig 1: Identifying Awl (0490441)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0490442 Awl
NOTE: (Reamer 7.1 H7) Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51
1 = 0490443 Awl
NOTE: (Reamer 7.2 H7) Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51
2 = 0490444 Guide taper
NOTE: (Guide taper 7 mm) Replaced by 00 4 217 (0 490 448)
1 = 0490445 Awl
NOTE: (Reamer 8.1 H7) Engine: M10, M30
1 = 0490446 Awl
NOTE: (Reamer 8.2 H7) Engine: M10, M30
2 = 0490447 Guide taper
NOTE: (Guide taper 8 mm)
2 = 0490448 Guide taper
NOTE: (Guide taper 7 mm)
1 = 0490450 Awl
NOTE: (Reamer 6.1 H7) Engine: M44, M52, M60, M62, from 9/92 M42, M50, M51
1 = 0490451 Awl
NOTE: (Reamer 6.2 H7) Engine: M44, M52, M60, M62, from 9/92 M42, M50, M51
2 = 0490452 Guide taper
NOTE: (Guide taper 6 mm)
2 = 0490453 Box
NOTE: (Storage box)
