Storage Location

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

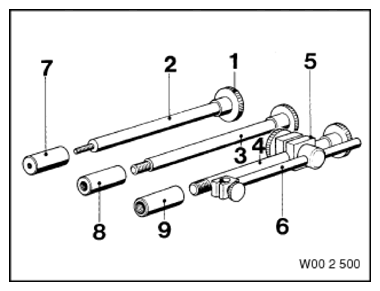

Fig 1: Identifying Holder (0490170)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

0490171 Nut
NOTE: (Knurled nut (4 pieces)) Can no longer be ordered separately. Only available as part of set 00 2 500 = 83 30 0 490 170.
0490172 Extension
NOTE: (Extension (thread M6)) Can no longer be ordered separately. Only available as part of set 00 2 500 = 83 30 0 490 170.
0490173 Extension
NOTE: (Extension (thread M8)) Discontinued, only available via complete tool
0490174 Extension
NOTE: (Extension (thread M10)) Discontinued, only available via complete tool
0490175 Terminal
NOTE: (Clamping piece) For extensions Can no longer be ordered separately. Only available as part of set 00 2 500 = 83 30 0 490 170.
0490176 Terminal
NOTE: (Clamping piece) For gauge Can no longer be ordered separately. Only available as part of set 00 2 500 = 83 30 0 490 170.
0490177 Connecting piece
NOTE: (Connecting piece (thread M6)) Discontinued, only available via complete tool
0490178 Connecting piece
NOTE: (Connecting piece (thread M8)) Discontinued, only available via complete tool
0490179 Connecting piece
NOTE: (Connecting piece (thread M10)) Discontinued, only available via complete tool
2208442 Extension
NOTE: Can no longer be ordered separately. Only available as part of set 00 2 500 = 83 30 0 490 170.
