0490118 001490 Assembly stand AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300495187

NOTE: For accommodating engine, transmission and rear axle, replaced by 00 1 450 (passenger car) Release for motorcycle only! Replaced by 00 2 300 (0 495 187)

Consisting of:

0490119 Frame
NOTE: (tube frame) Release for motorcycle only!
0490120 Fixture
NOTE: (mount head without mount flange)
0490121 Fixture
NOTE: (mount flange (2 pieces required)) Release for motorcycle only!
0490122 Fuse

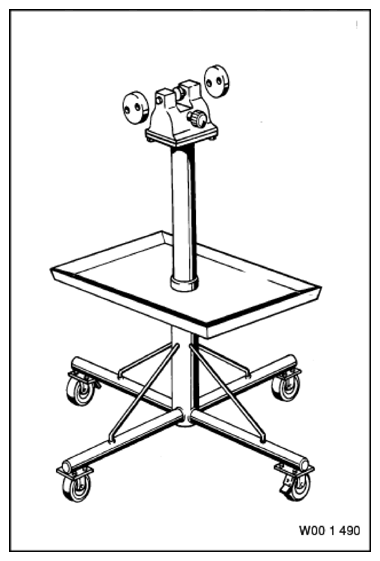

Fig 1: Identifying Assembly Stand (0490118)
Courtesy of BMW OF NORTH AMERICA, INC.
0490123 Fitting aid
NOTE: (stop of mount flange)
0490124 Lever
NOTE: (release lever)
0490125 Wheel
NOTE: (wheel without brake) Release for motorcycle only!
0490126 Wheel
NOTE: (wheel with brake) Release for motorcycle only!
0490127 oddments tray
NOTE: (storage plate)
