SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 02 87 (721)

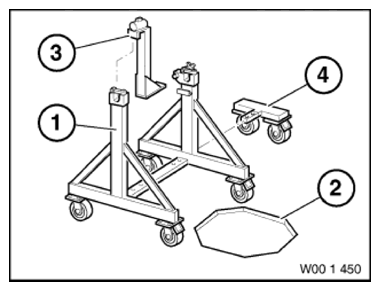

Fig 1: Identifying Assembly Stand (0490110)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

0490111 Assembly stand
NOTE: (Assembly stand for 8- and 12-cylinder engines) Engine: M60, M62, M70, M73
0490112 Collection pan
0490113 Fixture
NOTE: (Attachment part) For mounting the 4- and 6- cylinder engines and transmissions, engine: M10, M20, M30, M40, M41, M42, M43, M44, M50, M52, M52, S14, S38, S50B30, S50B32, transmission: All
0490114 Support
NOTE: (Base with 2 wheels) For mounting the 4- and 6- cylinder engines and all transmissions
