22 11 001 Replacing right engine mount

Necessary preliminary work:

• Draw off A/C SYSTEM .
• Remove the COWL PANEL COVER .
• Remove top BULKHEAD COVER .
• Remove the SERVOMOTOR FOR ECCENTRIC SHAFT .
• Remove front UNDERBODY PROTECTION .
• Remove the HEADLIGHT .
• Support engine with jack.

Removal:

Release screw (1) and disconnect air conditioning line.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off air conditioning line from holder (1).

Release holder (2) for the air conditioning line.

Release screws (3) and screws (4).

Courtesy of BMW OF NORTH AMERICA, INC.

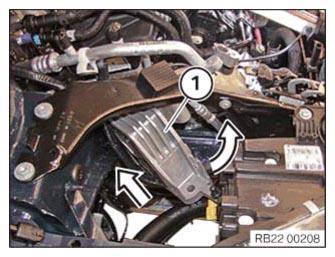

Turn engine mount (1) in direction of arrow and remove upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach engine mount (1) and slide under the cross connection.

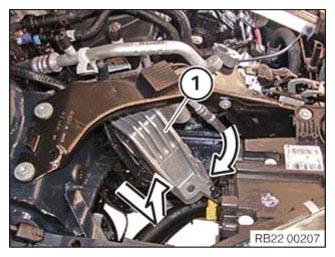

Turn engine mount (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (3) and screws (4).

Parts  : Replace screws (4).

Tightening torque, refer to: 22 11 1/2AZ .

Tighten holder (2) for the air conditioning line.

Clip in air conditioning line into holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Join air conditioning lines together and tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work  :

• Remove jack from below engine.
• Install the WASHER FLUID RESERVOIR FILLER NECK .
• Install front UNDERBODY PROTECTION .
• Install the HEADLIGHT .
• Install the SERVOMOTOR FOR ECCENTRIC SHAFT .
• Install the UPPER BULKHEAD COVER .
• Install the COWL PANEL COVER .
• Fill the A/C SYSTEM .
