00 00... Steering components: Check for play, damage and, if nec., tightness
WARNING: This page is about a different variant/trim than selected.
Checking play:
NOTE:
Observe notes on CHECKING THE STEERING BACKLASH!
- Check the tie rod backlash only in loaded condition or in the design position.
- Checking with front axle raised:
- To evaluate the play of the steering gear, it is necessary to pressurize the steering gear via its servo system!
- The combustion engine must be running during hydraulically or electrically assisted steering for this purpose
Steering wheel:
Shift steering wheel back and forth and check for play.
Tie rod joint:

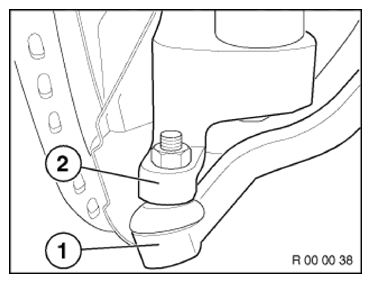

There must be no play between the tie rod joint (1) and track-rod arm (2).
Check for damage:
Check bellows, axle and tie rod sleeves (e.g. cracks, holes) and leaks.
Check bellows for missing retaining straps.
Check for tightness (only for hydraulically supported steering):
Check all visible connections, hoses, lines and steering box for traces of fluid.

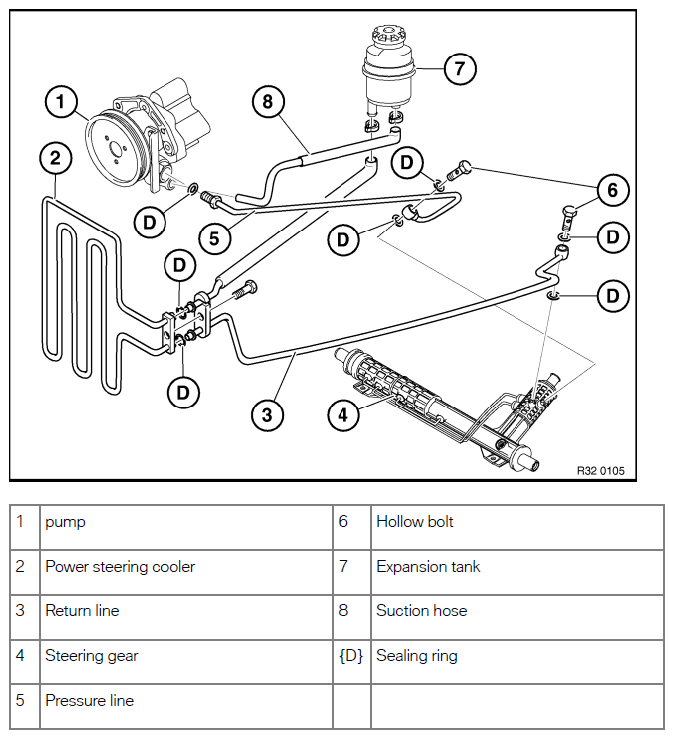

The following image shows the principal arrangement of the hydraulic steering components and lines.
