27 10 100 Replacing left radial shaft seal for connection shaft
WARNING: This page is about a different variant/trim than selected.
Special tools required :
- 23 0 490
- 2 406 181
IMPORTANT:
After completion of work, check GEARBOX OIL LEVEL and top up if necessary.
Use only the APPROVED GEARBOX OIL . Failure to comply with this requirement will result in serious damage to the transfer case!
Necessary preliminary tasks :
- Remove TRANSFER CASE .
Drive a hole into radial shaft seal using a centre punch.
IMPORTANT:
Do not use a drill since metallic shavings may result in transmission malfunction.

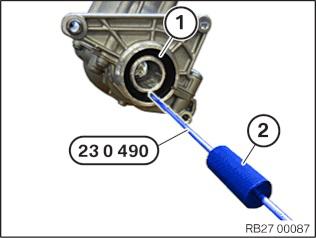

Thread special tool 23 0 490 into radial shaft seal (1).
Drive out radial shaft seal (1) with impact weight (2).
Installation:
Apply oil to sealing lip of new radial shaft seal.

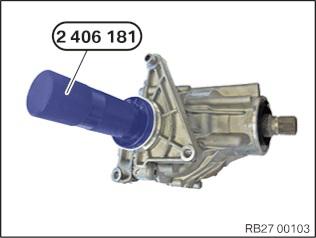

Drive shaft seal firmly home with special tool 2 406 181.
Required follow-up work:
Install TRANSFER CASE .
