24 34... Manual emergency release of transmission lock
WARNING: This page is about a different variant/trim than selected.
In the event of a power supply interruption, e.g. flat battery or electrical fault, the parking lock must be manually released, otherwise the wheels will be locked and the vehicle cannot be moved.
IMPORTANT:
Secure vehicle against rolling, e.g. with chocks.

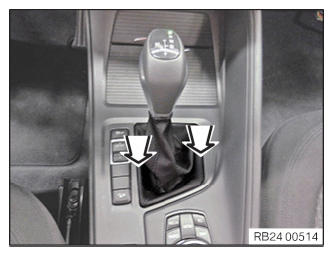

Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.
Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.
Removal:

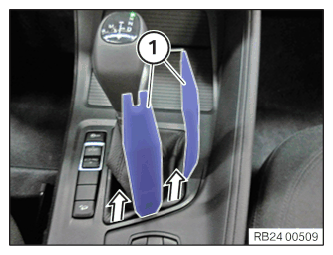

Unclip lever cuff using chocks (1) and pull upward.

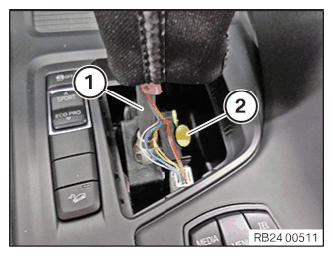

Unlock connector (1).
Push yellow release lever (2) down and hold.
Move selector lever (1) in direction "R" and let go of yellow release lever (2) again.
Engage Position "N".
Installation:

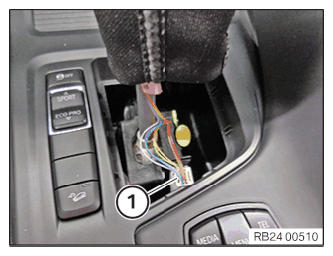

Lock connector (1).
Push lever cuff down until it engages.
