22 11 001 Replacing right engine mount

Necessary preliminary work:

• Draw off AIR CONDITIONING SYSTEM .
• Remove COWL PANEL COVER .
• Remove COVER OF BULKHEAD ON TOP .
• Remove SERVOMOTOR FOR ECCENTRIC SHAFT .
• Remove front UNDERBODY PROTECTION .
• Remove HEADLIGHT .
• Support engine with jack.

Removal:

Release screw (1) and disconnect air conditioning line.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off air conditioning line from holder (1).

Release holder (2) for the air conditioning line.

Release screws (3) and screws (4).

Courtesy of BMW OF NORTH AMERICA, INC.

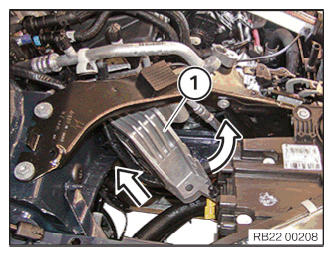

Turn engine mount (1) in direction of arrow and remove upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach engine mount (1) and slide under the cross connection.

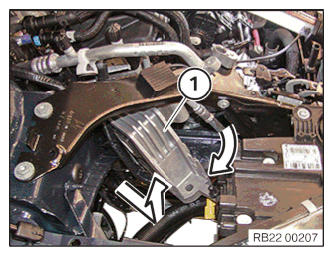

Turn engine mount (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (3) and screws (4).

Parts:  Replace screws (4).

Tightening torque 22 11 1AZ  / 22 11 2AZ .

Tighten holder (2) for the air conditioning line.

Clip in air conditioning line into holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Join air conditioning lines together and tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Remove jack from below engine.
• Install front UNDERBODY PROTECTION .
• Install HEADLIGHT .
• Install SERVOMOTOR FOR ECCENTRIC SHAFT .
• Install UPPER BULKHEAD COVER .
• Install COWL PANEL COVER .
• Fill AIR CONDITIONING SYSTEM .
