12 61 280 Removing and installing/replacing the oil pressure switch (B38, B46, B48)

Necessary preliminary work:

• Remove FAN COWL

Removal:

The oil pressure switch is located beneath the high pressure pump.

Attention!

A small amount of engine oil emerges when oil pressure switch is removed.

Have a cleaning cloth ready.

Catch and dispose of engine oil.

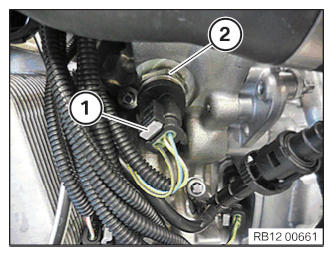

Unlock connector (1) and pull off.

Release and remove oil pressure switch (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Part:  Sealing ring

Install and tighten oil pressure switch (2).

Tightening torque 12 61 2AZ .

Attach connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FAN COWL
• Check engine oil level, top up if necessary.
