11 40 000 Checking engine oil pressure (B48AO0)

Special tools required:

• 2 289 603
• 11 4 310

Necessary preliminary tasks:

• Remove UNDERBODY PROTECTION

Removal:

Remove oil drain plug (1).

Drain oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Parts:  Replace screw (2) with O-ring (1).

Install and tighten screw (2).

Tightening torque: 11 42 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

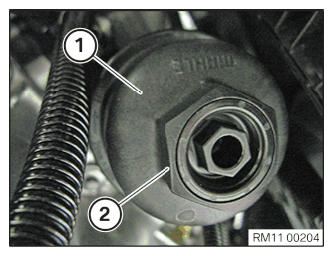

Undo oil filter cover (1) at hexagon head (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Checking engine oil pressure with diagnosis tester:

Remount filter element (1) in the special tool 2 289 603.

Remount O-ring (2) if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

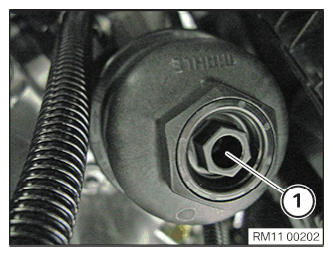

Screw special tool 2 289 603 with oil filter element into the oil filter housing (1).

Tightening torque: 11 42 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tools 2 289 603 and 11 4 310.

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly oil O-ring at the pressure sensor (1), (100 bar, order number: 0 431 592  ).

Screw pressure sensor (1) hand-tight into special tool 11 4 310.

Connect connecting cable (2) of Integrated M  easurement I  nterface B  ox (IMIB) to pressure sensor (1).

Run the corresponding test module.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Stop engine.

Remove the special tools.

Check the freedom of movement of the non-return valve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Part:  Replace O-ring (2).

Insert the oil filter element (1) into the oil filter cover.

Replace O-ring (2) and oil it with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Install oil filter cover (1) and tighten at hexagon head (2).

Tightening torque: 11 42 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks:

• Install UNDERBODY PROTECTION
• Vehicle horizontal
• Run engine for a brief period then switch off
• Check oil level and correct if necessary.
