11 28... Tensioning/releasing of drive belt for alternator (B48AO0)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

2 365 291
11 0 390

Necessary preliminary work:

Remove COVER OF BULKHEAD ON TOP .
Remove front right WHEEL ARCH COVER .
Remove front UNDERBODY PROTECTION .
Remove SUSPENSION CROSS-BRACE .

Removal:

Loosen screws (1).

Unclip line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Safety information:

Danger of injury when tensioning or releasing the drive belt.

Release belt tensioner (1) on screw (2) in direction of arrow (refer to the following instructions).

Fig 1: Drive Belt Routing Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 2 365 291 to relieve belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 365 291 on the deflecting element of the belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fuel lines on holder (1).

Relieve belt tensioner with special tool 2 365 291 in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Operation needs to be carried out by a second person helping.

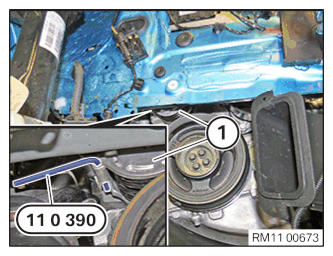

Secure belt tensioner (1) in place with special tool 11 0 390.

Courtesy of BMW OF NORTH AMERICA, INC.

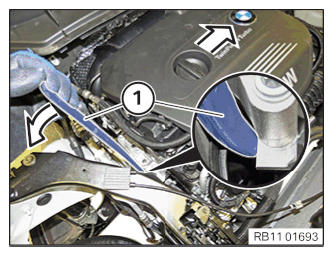

NOTE: If special tool 11 0 390 cannot be mounted, the engine on the engine mount must be pressed lightly in the direction of arrow with mounting lever (1) (max. 3 mm).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Safety information:

Danger of injury when tensioning or releasing the drive belt.

Courtesy of BMW OF NORTH AMERICA, INC.

Release belt tensioner (1) on screw (2) in direction of arrow (refer to following instructions).

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 2 365 291 to relieve belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 365 291 on deflecting element (1) of belt tensioner.

Unclip fuel lines on holder.

Relieve belt tensioner with special tool 2 365 291 in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Operation needs to be carried out by a second person helping.

Remove special tool 11 0 390 from belt tensioner (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If special tool 11 0 390 cannot be mounted, the engine on the engine mount must be pressed lightly in the direction of arrow with mounting lever (1) (max. 3 mm).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 00 2AZ .

Clip in line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install front UNDERBODY PROTECTION
Install front right WHEEL ARCH COVER
Install COVER OF BULKHEAD ON TOP
Install the SUSPENSION CROSS-BRACE
