11 14 151 Replacing crankshaft seal on transmission side (B48AO0)
Special tools required:
- 23 0 490
- 118815
- 119 182
- 119 184
- 119 181
- 2 360 215
- 119 183
Necessary preliminary tasks:
- Remove FLYWHEEL
Removal:
Keep magnet wheel (1) in a plastic bag away from metallic shavings/debris.
Remove magnet wheel (1) from crankshaft.
Remove metallic shavings/debris immediately with vacuum cleaner.
Do not remove metallic shavings/debris with compressed air!

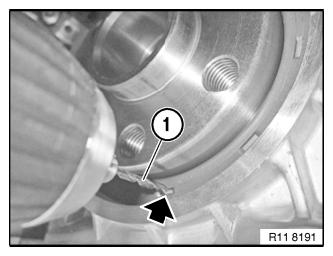

Drill a hole with a drill (1) in the radial shaft seal (see arrow).
Immediately carefully remove residual metallic shavings/debris.

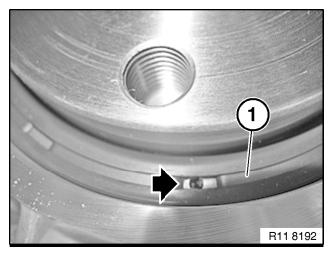

Screw in special tool 23 0 490 in direction of arrow.
Drive out radial shaft seal with impact weight in direction of arrow.
Installation:
Preassemble special tool 11 8 815 on crankshaft.
Brush radial shaft seal (1) over special tool 11 8815.
Move radial shaft seal (1) parallel up against the crankcase.
Fasten special tool 11 9 182 with special tool 11 9 184 on the crankshaft.
Prepare special tool 11 9 181 for installation.

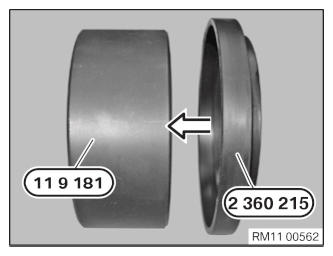

Connect special tool 2 360 215 onto special tool 11 9 181.
Pull on radial shaft seal with special tool 11 9 181 and 2 360 215 in combination with special tool 11 9 183.
Screw on radial shaft seal with special tool 11 9 183 to limit position.
Note the installation position of the magnet wheel.
Position magnet wheel (1) on crankshaft.
Required follow-up work:
- Install the FLYWHEEL
