00 00... CBS reset

WARNING: This page is about a different car, the 2022 BMW X1 and 2021 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The CBS maintenance jobs can be reset in the car. It is always recommended to reset the CBS jobs via the diagnosis system.

It is only possible to code the country-specific statutory intervals with the diagnosis system.

Front/rear brake service:

A CBS reset is only possible in the vehicle with a sanded brake pad wear sensor (CBS display in CID active).

A CBS reset is only possible with the diagnosis system with a non-sanded brake pad wear sensor (no CBS display in CID).

Other known causes of CBS reset problems:

Parking brake engaged
Brake pedal pressed

CBS reset with diagnosis system

NOTE: To be able to check or correct the vehicle's on-board date properly, the diagnosis system requires the correctly set tester system date!
The jobs may only be reset after the service measure has been completed.
The CBS jobs can be reset via the diagnosis system on the following path:

Service functions
Maintenance
CBS reset

CBS reset in the car

On the vehicle, service operations can be reset at the instrument panel.

NOTE: On-board date must be correctly set.
A reset is only possible in the car if:

no CC message is present
availability of the service job is under 90 %

Resetting of a service job must always be carried out after a maintenance measure has been completed.

The resetting process is interrupted it the time is exceeded or if a terminal is changed.

Switch the ignition on.

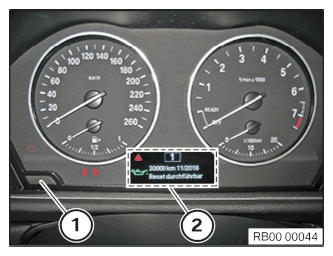

Press the trip distance recorder reset button (1) (referred to as button in the following) for approx. 10 seconds until the 1st service job is displayed in the display (2).
Bring up the next item by briefly pressing the button again. Select the desired service job.
If a reset is possible, this is displayed in the instrument cluster as "Reset possible".

Courtesy of BMW OF NORTH AMERICA, INC.

Press the button for 3 s to start the reset.
Confirm text message "Perform reset?" by pressing the button for 3 seconds again.
The status of the reset is indicated in the display by a progress bar and reads "Reset in progress".
The reset is confirmed as "Reset successful" after completion.

CBS reset of inspections/tests required by law

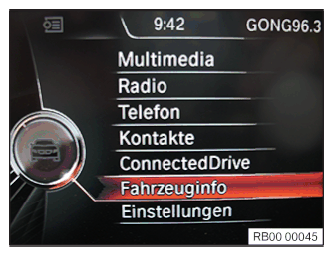

Input the target date for the statutory vehicle inspection by clicking on the scope of maintenance work with the controller in the CBS main menu of the Central Information Display under:

Vehicle information
Vehicle status
Service requirements
Vehicle inspection
Enter service appointment

Courtesy of BMW OF NORTH AMERICA, INC.

The target month or the target year can be set and acknowledged by turning and pressing
