13 71 035 Remove clean air pipe (B46, B48)

Necessary preliminary work:

Removal:

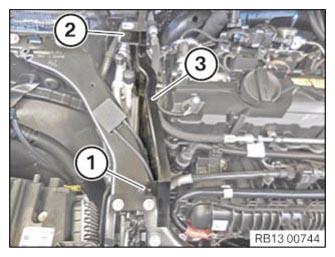

Release expansion rivet (1).

Release screw (2).

Remove partition wall (3).

Courtesy of BMW OF NORTH AMERICA, INC.

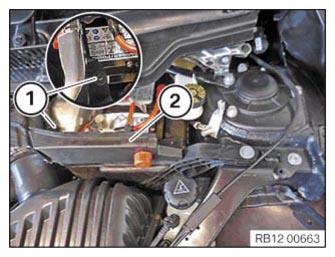

Loosen screw (1).

Lay the cover (2) of the positive battery connection point to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

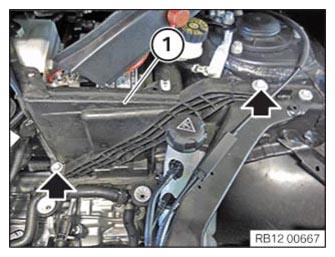

Release the screws along the arrows and remove the tension strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

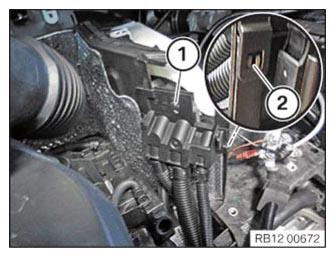

Unlock the lock (2) and release the cable clip (1) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

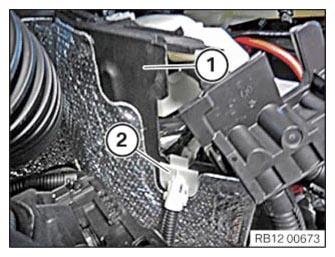

Release the cable clip (2) from cover (1) and lay to one side.

Feed out cover (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

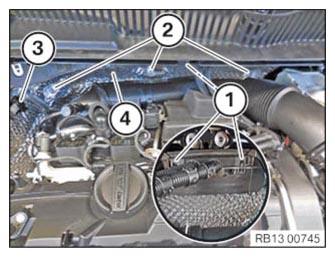

Unlock cable clips (1) and release.

Unfasten screws (2).

Unclip fuel line from holder (3).

Remove upper bulkhead (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (3).

Unlock and disconnect line (1) on the clean air pipe.

Release line (2) and disconnect from cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and release clamp (1) on the clean air pipe (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Raise clean air pipe (1), unlock and disconnect connector (2) from heating element.

Release clamp (3) at the rear of the clean air pipe (1).

Remove clean air pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

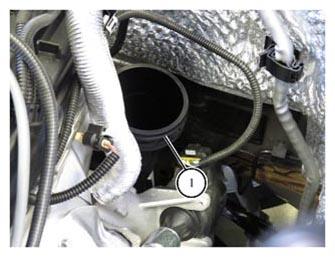

Replace molded sealing ring (1) on the exhaust turbocharger.

Part: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach clamp (3) at the rear of the clean air pipe (1).

Then attach connector (2) to the heating element and lock.

Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Install clean air pipe.

Connect clamp (1) to clean air pipe (2) and lock.

Clamp (1) must audibly snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (3).

Tightening torque 13 71 6AZ .

Connect line (1) to clean air pipe and lock.

Connect line (2) to cylinder head cover and lock.

Lines must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Install upper bulkhead (4).

Connect cable clips (1) and lock.

Clip fuel line onto holder (3).

Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the cover (1).

Attach cable clips (2) to the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cable clips (1).

Lock (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Install tension strut (1).

Tighten screws along arrows.

Tightening torque 17 10 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover (2) of the positive battery connection point.

Tighten screw (1).

Tightening torque 17 10 10AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install partition wall (3).

Attach expanding rivet (1).

Tighten screw (2).

Tightening torque 17 10 10AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work

Install UPPER BULKHEAD COVER .
Install ACOUSTIC COVER .
Install INTAKE SILENCER HOUSING .
Install STRUT BRACE .
