18 32 050 Removing and installing/replacing catalytic converter (B48)

WARNING: Risk of burning!
Only perform this repair work after the exhaust system has cooled down.

Necessary preliminary work:

Clamp off BATTERY EARTH LEAD .
Remove STRUT BRACE .
REMOVE CONSOLE FOR WINDSCREEN WASHER SYSTEM .
Remove OXYGEN SENSOR .
REMOVE MONITORING SENSOR .
Remove front UNDERBODY PROTECTION .
Remove EXHAUST SYSTEM .

Removal:

If fitted: Removing differential pressure sensor for the fuel particulate filter.

Carefully unlock the latch mechanisms (1).

Feed out cover (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Detach pressure hose (2).

Release screw (3).

Feed out and remove the differential pressure sensor (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber mounts (1) from the catalytic converter.

Check rubber mount. Replaced damaged rubber mounts.

Parts: Rubber mount

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on the exhaust-air duct.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left heat shield (3).

Release left heat shield (3) from guide pin (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on upper heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on upper heat shield (2).

Feed out and remove upper heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on the left of the catalytic converter.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1). The clamp must be replace every time it is removed.

If necessary, replace clamp.

Parts: Clamp.

Clean sealing surface.

Release catalytic converter (2) from exhaust turbocharger and place to side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on lower heat shield.

Release screw (2) and remove exhaust-air duct (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on lower heat shield above the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on lower left heat shield at the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Place catalytic converter (1) to the side.

Release screws (2) on lower heat shield (3).

Feed out and remove heat shield (3) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove upper heat shield (2) at the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

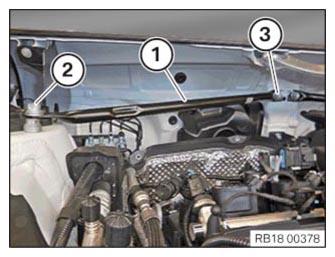

Unscrew nut (3).

Release screw (2).

Remove strut brace (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out catalytic converter (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Replace gasket (1) on catalytic converter.

Parts: Gasket.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To facilitate the installation of the heat shields, join all screws first and tighten them afterwards.

Feed in lower heat shield (1) and place on the front axle.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in catalytic converter (1) from the top and place on the front axle.

Courtesy of BMW OF NORTH AMERICA, INC.

Place catalytic converter (1) to the side.

Feed in lower heat shield (3) behind the exhaust turbocharger and secure with screws (2).

NOTE: Join all screws of the heat shield first and tighten them afterwards.
Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure lower heat shield with screw (1) above the exhaust turbocharger.

NOTE: Join all screws of the heat shield first and tighten them afterwards.
Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure lower heat shield with screw (1) on the left side of the cylinder head.

NOTE: Join all screws of the heat shield first and tighten them afterwards.
Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Join screws (1) on bottom of heat shield and tighten screws.

Tightening torque 18 30 8AZ .

Mount exhaust-air duct (3) and tighten screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount catalytic converter (2) on exhaust turbocharger and holder.

Tighten clamp (1).

Tightening torque 18 30 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Tightening torque 18 30 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in upper heat shield (2) and secure with screw (1).

NOTE: Join all screws of the heat shield first and tighten them afterwards.
Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure upper heat shield with screws (1).

NOTE: Join all screws of the heat shield first and tighten them afterwards.
Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in left heat shield (3) and secure at the guide pin (2).

Join and tighten screws (1).

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on exhaust duct.

Tightening torque 18 30 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount upper heat shield (2) on the cylinder head and tighten screws (1).

Tightening torque 18 30 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect rubber mount (1) to catalytic converter.

Courtesy of BMW OF NORTH AMERICA, INC.

Install strut brace (1).

Tighten nut (3).

Tightening torque 51 61 2AZ

Tighten screw (2).

Tightening torque 51 61 3AZ

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted: Install differential pressure sensor for the fuel particulate filter.

Feed in and install the differential pressure sensor (4).

Tighten screw (3).

Tightening torque 13 62 7AZ .

Replace pressure hose (2).

Parts: Pressure hose

Connect the pressure hose (2) with the differential pressure sensor (4).

Connect and lock the connector (1).

The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the cover (2).

Lock latch mechanisms (1).

The latch mechanisms (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install OXYGEN SENSOR .
Install MONITORING SENSOR .
Install front UNDERBODY PROTECTION .
Install EXHAUST SYSTEM .
Install CONSOLE FOR WINDSCREEN WASHER SYSTEM .
Install STRUT BRACE .
Connect BATTERY EARTH LEAD .
