51 45 195 Removing and installing/replacing instrument panel trim, bottom right

Removal:

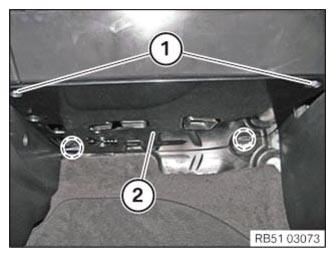

Unscrew nuts (1).

Lower trim panel (2) slightly and disconnect plug connections behind it.

Feed the trim panel (2) out of the guides and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Hold on to the trim panel (2) and connect the plug connection.

Feed in the trim panel (2) into the guides at the front.

NOTE: Feed the guides of the trim panel (2) correctly into the corresponding holders on the vehicle.

Tighten down nuts (1).
