REP-TAT-P-5111-02-F48 Install bumper panel, front

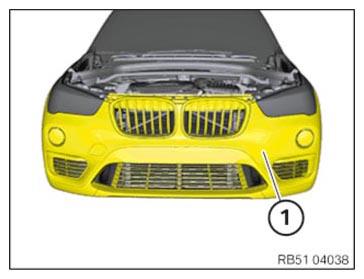

• Attach the front bumper panel (1) in the support at the bottom.
• Depending on the equipment specification, connect the connectors on the following components and lock and disconnect:
  • Ultrasonic sensors for Park Distance Control (PDC)
  • Ultrasonic sensors for the Parking Maneuvering Assistant (PMA)
  • Fog lights
  • Temperature sensor

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the hose for the headlight cleaning system and lock.
• Tilt front bumper panel (1) up and position.

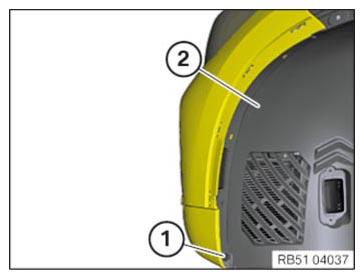

• Attach the front bumper panel (2) on the side.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Bumper panel on side wall
  Screw	Tightening torque	3Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

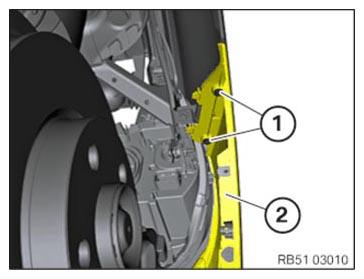

• Install wheel arch trim panel (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Wheel arch cover
  Screw	Tightening torque	3Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

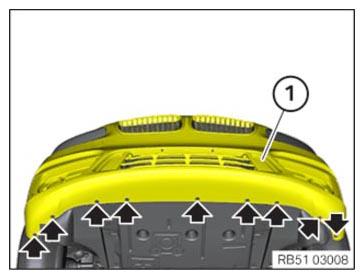

• Tighten the bolts (arrows) on the bottom of the front bumper panel (1).
  TIGHTENING TORQUE SPECIFICATION



  Bumper trim, lower
  Screw	Tightening torque	2, 5Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

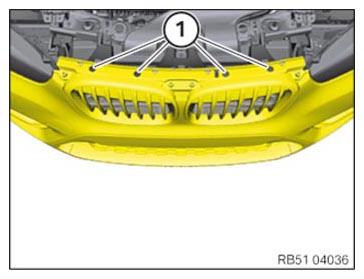

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Bumper panel on air duct, top
  Screw	Tightening torque	4, 6Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the WHEEL ARCH TRIM  on the left and right
• Install the SEAL FOR THE FRONT BONNET
