63 10 004 Adjusting headlights

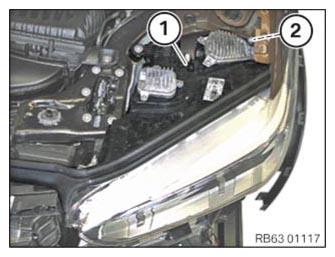

Carry out headlight adjustment at adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

Adjusting screw (1) serves primarily for height adjustment.

Adjusting screw (2) serves primarily for lateral adjustment.

1. Adjust the height at the adjusting screw (1)

   Courtesy of BMW OF NORTH AMERICA, INC.

   US version only:

   Only carry out the setting of the lateral  adjustment when the securing plug in the adjusting screw for the lateral adjustment is missing or is damaged, refer to: REMOVE THE HORIZONTAL BLOCKING BEFORE ADJUSTING THE HEADLIGHT

   If necessary, remove the damaged plug

2. Make the lateral adjustment at the adjusting screw (2)

After headlight adjustment:

Perform reference run. For this purpose, switch off and on the headlights. Check again headlight adjustment.

US version only:

If the lateral adjustment is checked or corrected, press the new plug into the adjusting screw for the lateral adjustment, refer to: CHECK/SET HORIZON BLOCKING AFTER ADJUSTING THE HEADLIGHT without any damage  .
