84 10 700 Removing and installing/replacing base plate

Special tools required:

• 00 9 340

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE !

Necessary preliminary work:

• Remove the CENTER ARMREST

Removal:

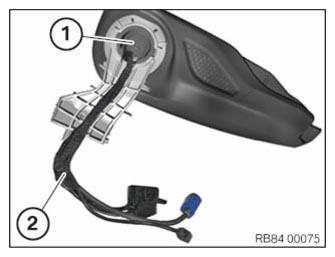

Expose access lines (2) up to base plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.

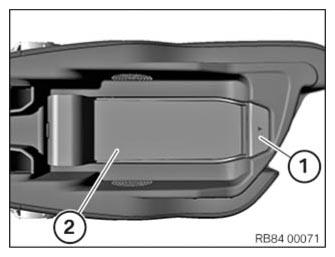

If necessary, press button (1) and remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

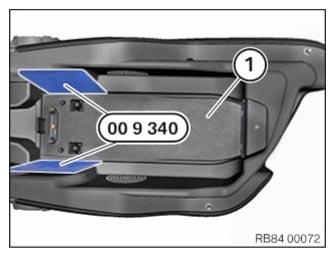

Disengage base plate (1) from center armrest on both sides with special tools 00 9 340.

Courtesy of BMW OF NORTH AMERICA, INC.

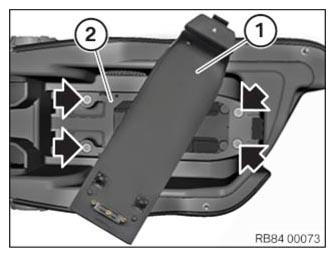

Turn base plate (1) away to the side.

Release screws from upper housing section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

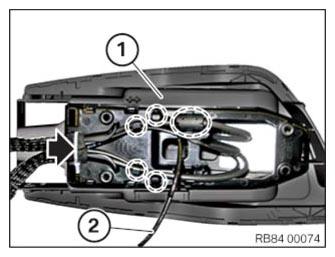

Raise upper housing section (1) and release cable straps if necessary.

Unlock and disconnect cable (2) to fan.

Unclip all cables on underside of upper housing section (1).

Thread out all cables and remove base plate.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Thread in all cables and base plate.

Clip in all cables on underside of upper housing section (1).

If necessary, fasten cables to upper housing section (1) with cable straps.

Connect cable (2) to fan.

Courtesy of BMW OF NORTH AMERICA, INC.

Thread access lines (2) through at center armrest (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws of upper housing section (2).

Join base plate (1) in upper housing section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, join cover (2) in base plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the CENTER ARMREST
