Installing the engine on the assembly jig

CAUTION: Component with heavy weight.
Injury hazard!

• Note component's center of gravity.
• Support component using a jack.
• Secure component against falling off the jack.

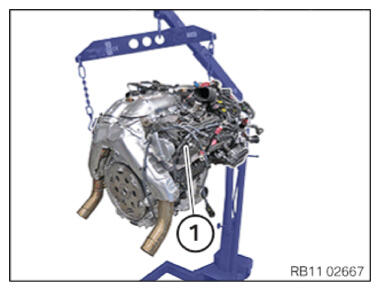

• Install the engine (1)  with the workshop crane and the special tool 0 490 567 (11 0 020) on the assembly jig.

Courtesy of BMW OF NORTH AMERICA, INC.
