Connecting the positive battery cable to the gas generator
Precondition
Battery ground lead is disconnected.

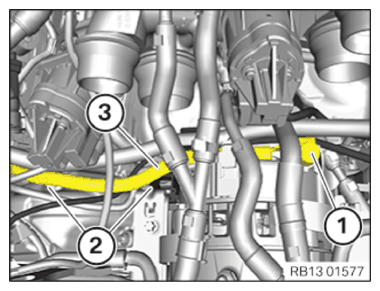

- Connect the positive battery cable (3) to the gas generator.
- Tighten nut.
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery cable to alternator | ||
| M8 | tightening torque | 19 Nm |
- Mount the cover (1) .
- Secure the positive battery cable (3) to the mountings (2) .
