Installing the module bracket on the front door

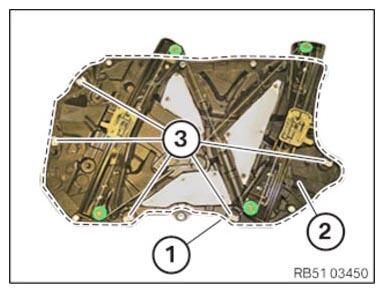

- Check seal (1) of the module bracket (2) for damage.
If the seal (1) is damaged, the module carrier (2) must be replaced.

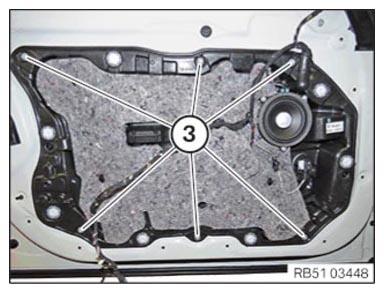

- Open all the snap fasteners (3).

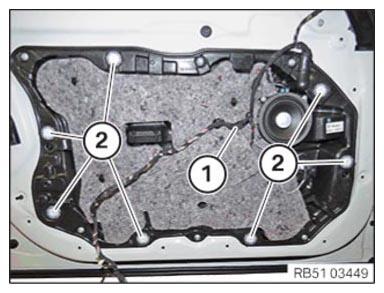

- Feed in module bracket completely with the power window and close the snap fasteners (2).
- Attach the wiring harness (1) and connect the connector.

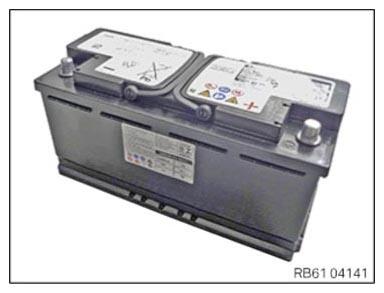

Disconnecting all battery ground leads
- Tighten down screws (3).
TIGHTENING TORQUES SPECIFICATION
| Module bracket to door | ||
| screw | tightening torque | 8 Nm |
- Shift the power window upwards until the side window glass correctly engages in both holders.
- Remove adhesive tape.
