Installing the cover in the engine compartment at the rear left or right

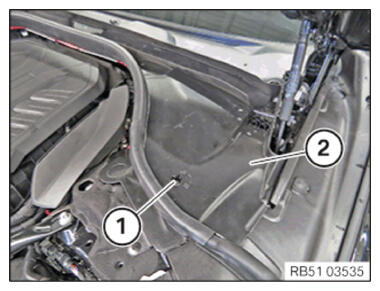

Installing the cover in the engine compartment on the rear left

• Install the cover (2).
• Lock the lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

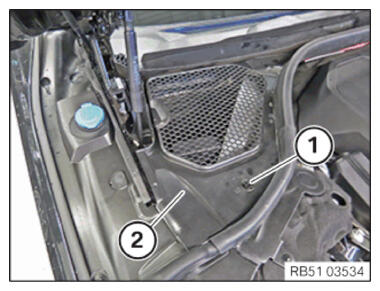

Installing the cover in the engine compartment at the right rear

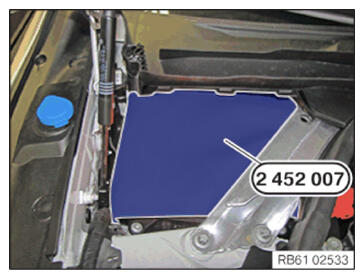

Remove the battery cover

• Remove the special tool 2 452 007 from the battery.

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cover (2).
• Lock the lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.
