Remove the mirror triangle cover
Remove the mirror triangle cover

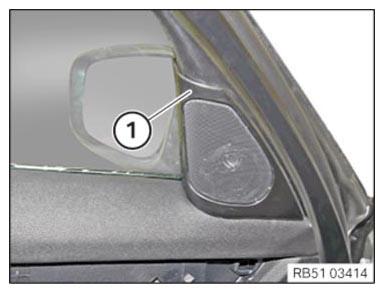

Unclip the mirror triangle cover
(1)
towards the inside using a suitable plastic wedge. Disconnect the plug connection and remove it.
Disconnect the plug connection and remove the mirror triangle cover
(1)
.
